Cross Braces, Medium Duty! 1½" Deep By 1½" Wide
Gallery Pro Medium Duty Cross Braces are available in three types: No-Notch, Type T and Type B. All types are 1½" × 1½" in profile.
No-Notch - Cross Braces have NO dado-cut centers. All sizes of No-Notch can be used in brace applications that do not need to cross another brace. Intended for use on the short side of the stretcher bar frame. Available in sizes 8" to 23".
Type T Cross Braces are notched on the Top side for use in T-Brace applications and are intended to be used along with a Type B Cross Brace. Available in sizes 24" to 72".
Type B Cross Braces are notched on the Bottom side and are for use in T-Brace applications along with a Type T Cross Brace. Type B brace bars are also available in sizes 24" to 72".
When preparing a T-Brace application, you must use one "Type T" brace bar and one "Type B" brace bar to line up their dado-cut centers.
Extra savings is available when purchasing a single sized Box of 20.
In addition you will need eight (8) wedges to tighten the canvas for each frame. Four (4) wood screws will be needed to secure cross braces.
For your convenience plastic wedges and wood screws are sold in boxes of 100 (See Gallery Pro Plastic Wedges and Wood Screws link below).
Key Features:
- 1½" × 1½" profile bar
- Tongue and groove design
- Three types of Cross Braces available
- Available in sizes up to 72"
Perfect For:
- Professional Artists
- Custom stretching at home
- Easy to use
- Canvas up to 72"
Click Tabs For More
Product Notes:
- Is Proprietary Exclusively At Jerry's! A Jerry's Artarama exclusive brand. The exclusive brands offer amazing quality, exceptional performance & great value. Comes with a 30 day money back guarantee!
- LPP Lowest Price - This item is already at the Best Lowest Price Possible and no further discounts or coupons can be applied.
Cross Braces, Medium Duty! 1½" Deep By 1½" Wide
Gallery Pro Medium Duty Cross Braces are available in three types: No-Notch, Type T and Type B. All types are 1½" × 1½" in profile.
No-Notch - Cross Braces have NO dado-cut centers. All sizes of No-Notch can be used in brace applications that do not need to cross another brace. Intended for use on the short side of the stretcher bar frame. Available in sizes 8" to 23".
Type T Cross Braces are notched on the Top side for use in T-Brace applications and are intended to be used along with a Type B Cross Brace. Available in sizes 24" to 72".
Type B Cross Braces are notched on the Bottom side and are for use in T-Brace applications along with a Type T Cross Brace. Type B brace bars are also available in sizes 24" to 72".
When preparing a T-Brace application, you must use one "Type T" brace bar and one "Type B" brace bar to line up their dado-cut centers.
Extra savings is available when purchasing a single sized Box of 20.
In addition you will need eight (8) wedges to tighten the canvas for each frame. Four (4) wood screws will be needed to secure cross braces.
For your convenience plastic wedges and wood screws are sold in boxes of 100 (See Gallery Pro Plastic Wedges and Wood Screws link below).
Key Features:
- 1½" × 1½" profile bar
- Tongue and groove design
- Three types of Cross Braces available
- Available in sizes up to 72"
Perfect For:
- Professional Artists
- Custom stretching at home
- Easy to use
- Canvas up to 72"
Gallery Pro Cross Braces - Medium Duty
Gallery Pro features a classic bracing system with a dato-cut center for a perfect cross brace.
No-Notch cross braces

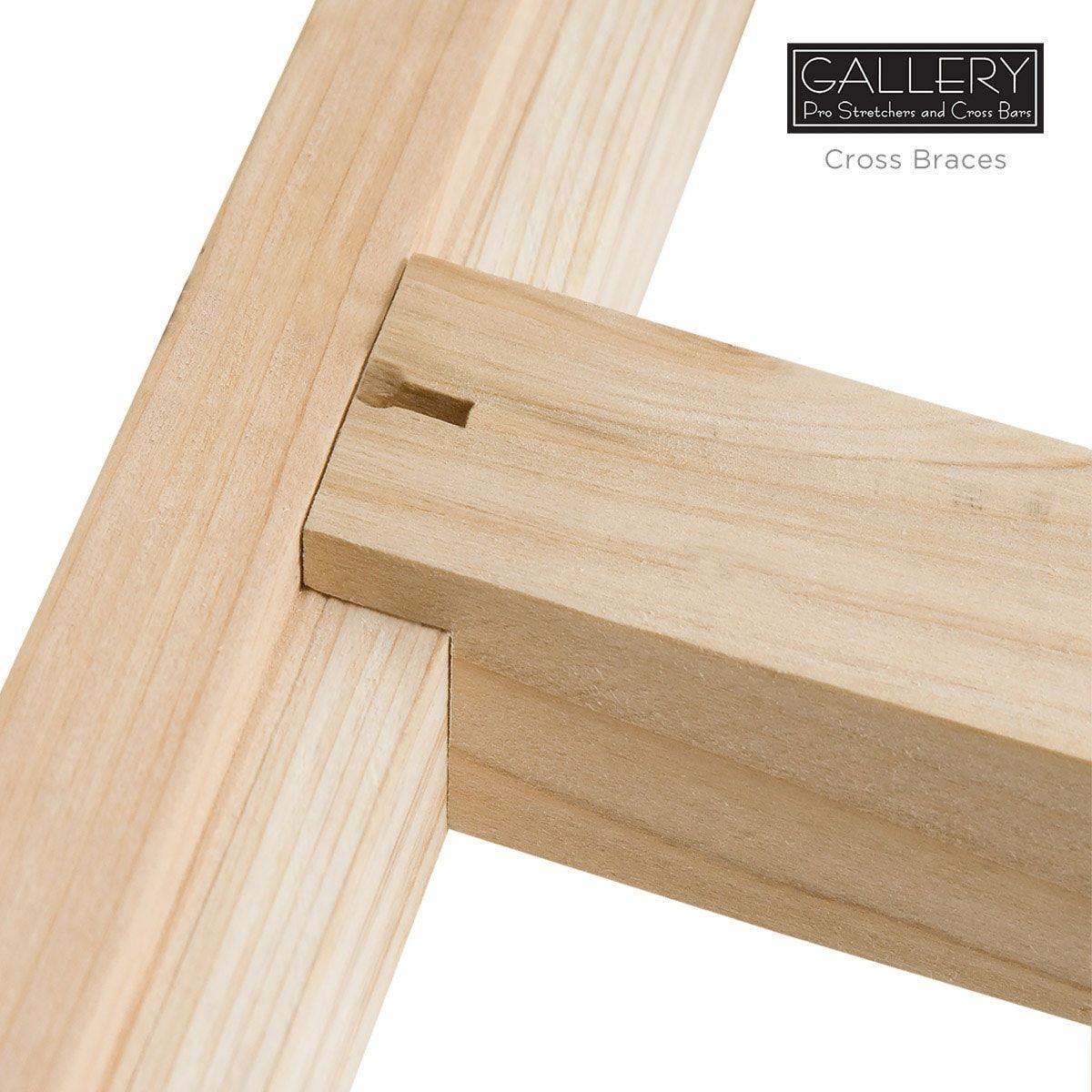

Tongue and groove design

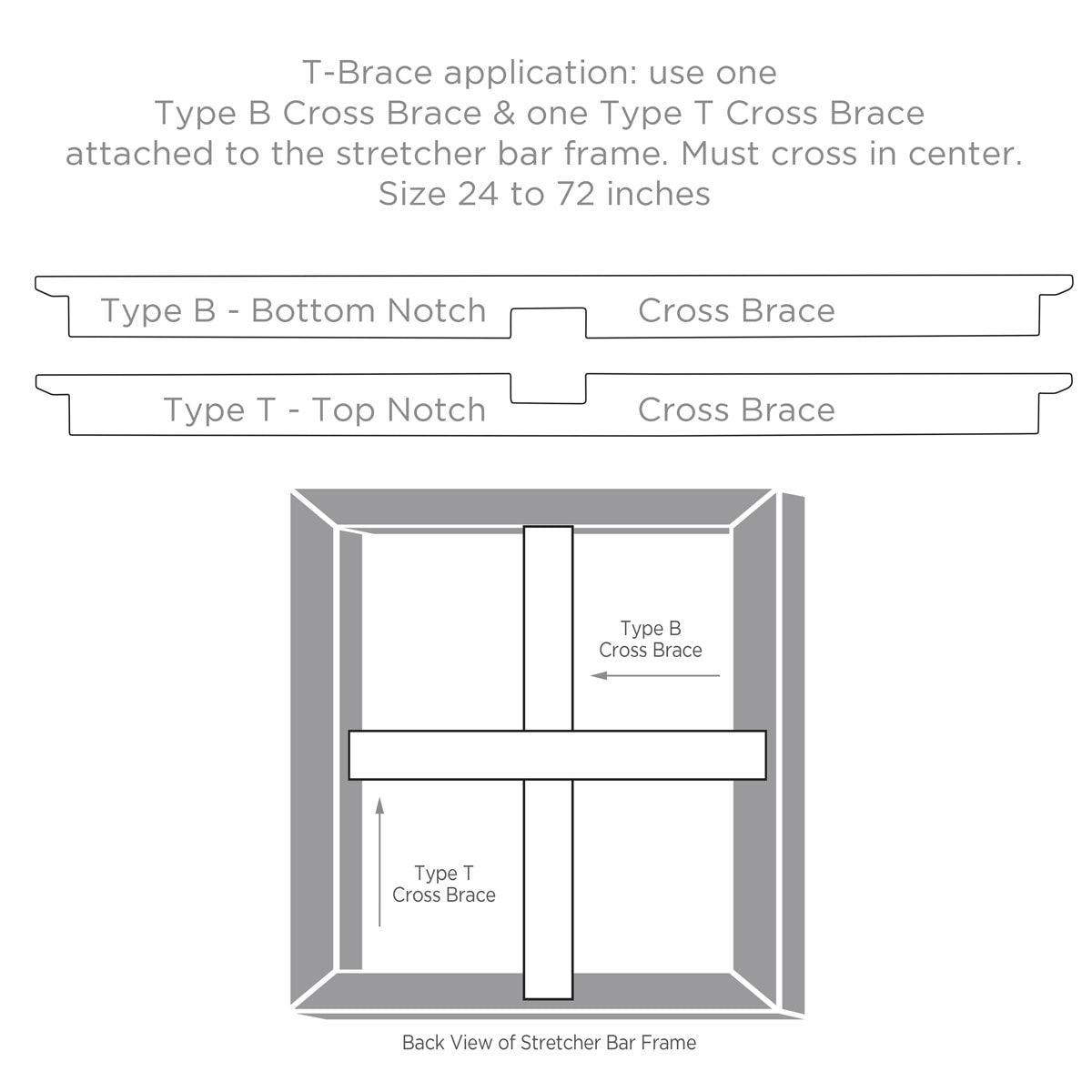

T-Brace cross brace example
3 types of cross braces
